The PGRⅡ Clarification Filter builds on proven filtration technology with innovative enhancements for streamlined, low-maintenance operations. Designed for high-volume liquid processing, it features a tool-free opening system that simplifies regeneration, reduces system complexity, and cuts overall costs. This model optimizes filtrate handling and valve controls for superior throughput and reliability.
Replaces traditional compressed air backflush with a simple mechanical opening system, minimizing maintenance and downtime.
Modified design with optimized openings for improved flow dynamics and easier access.
Increased capacity to handle larger volumes, supporting extended batch runs without interruptions.
Streamlined controls for precise, automated adjustments, enhancing system efficiency.
Up to 500㎡ filtration area per unit; multi-set skid assemblies for flexible, modular deployment.
Multiple lining options for contact surfaces, ensuring longevity in corrosive streams.

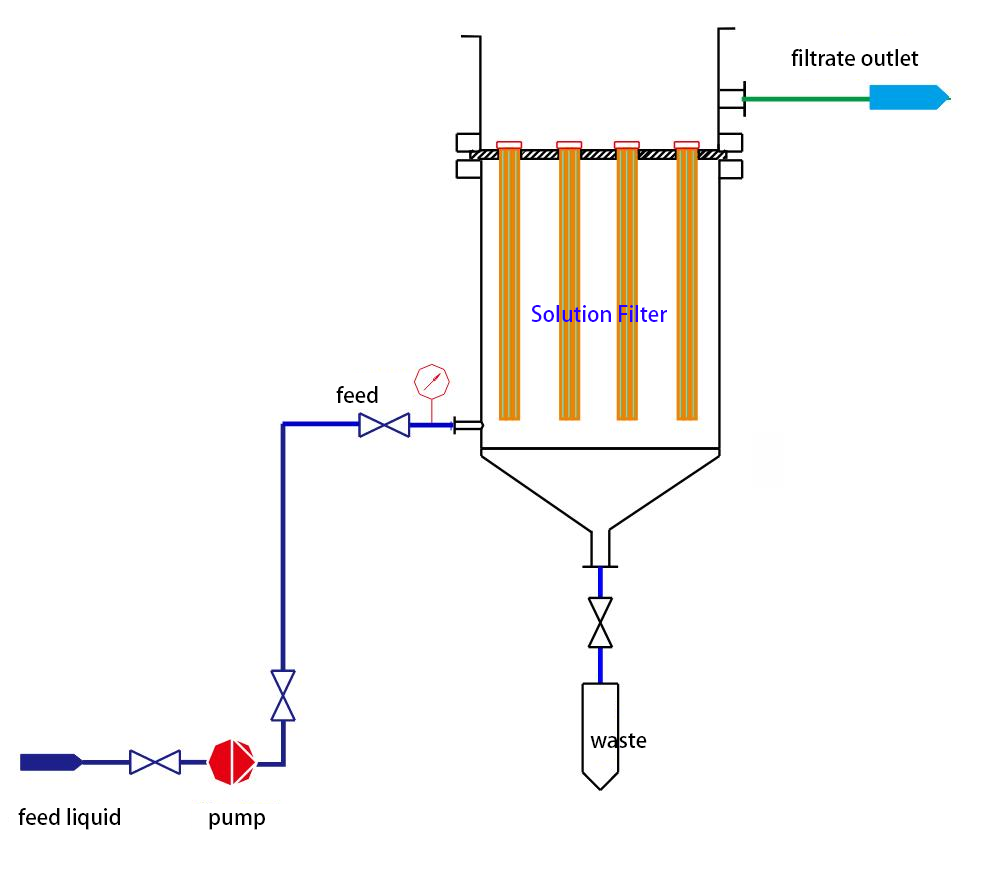

Feed and Filtration: Pressurized feed liquid enters the vertical chamber via the inlet pump and valve, passing through multiple microporous filter tubes for precise solid-liquid separation under airtight conditions.
Filtrate Collection: Clean filtrate overflows into the expanded upper reservoir and exits through the dedicated outlet, achieving high-clarity output for downstream use.
Waste Discharge: Concentrated solids settle at the bottom and are automatically discharged via controlled valves, with options for backwashing to recover filter media.
Regeneration and Integration: Supports fully automated cycles including chemical regeneration and multi-unit linkage, ensuring minimal downtime and consistent performance across large-scale operations.
